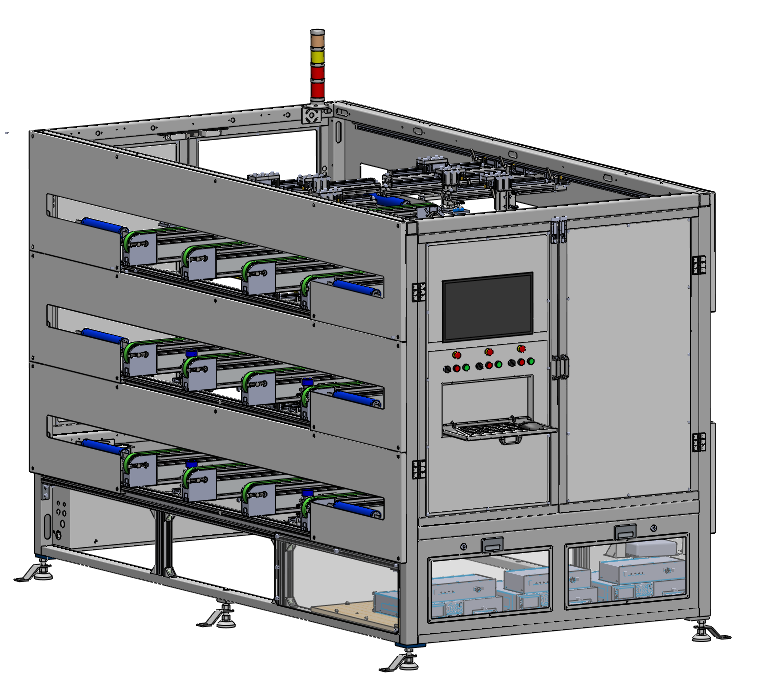

Hi-pot Tester
Name:
Hi-pot Tester
Introduction:
The product is suitable for PV module assembly line. It is mainly used for automatic test and result recording of electrical performance parameters of monocrystalline silicon, polycrystalline silicon and various solar cell modules.
Advantage:
Online automatic testing, without human intervention.
It can be equipped with insulation and voltage test functions respectively.
Real time data storage, classified storage, document export type optional.
Configure:
Dimension: 2650x1980x1650mm
Applied Module:length:1,600-2,400mm width:990-1,400mm(Can be customized)
Output rate: 5kvac / 40mA
Output voltage, vacuum: ± (1.5% of setting + 5V)
Voltage stability: 5kV AC
Output frequency: 50 Hz / 60 Hz ± 0.1%, adjustable
Output waveform: sine wave, peak coefficient =1.3-1.5
Output regulation: ± (1% of output + 5V)
Current offset: 0.000-40ma
Insulation resistance test: 1000V DC
